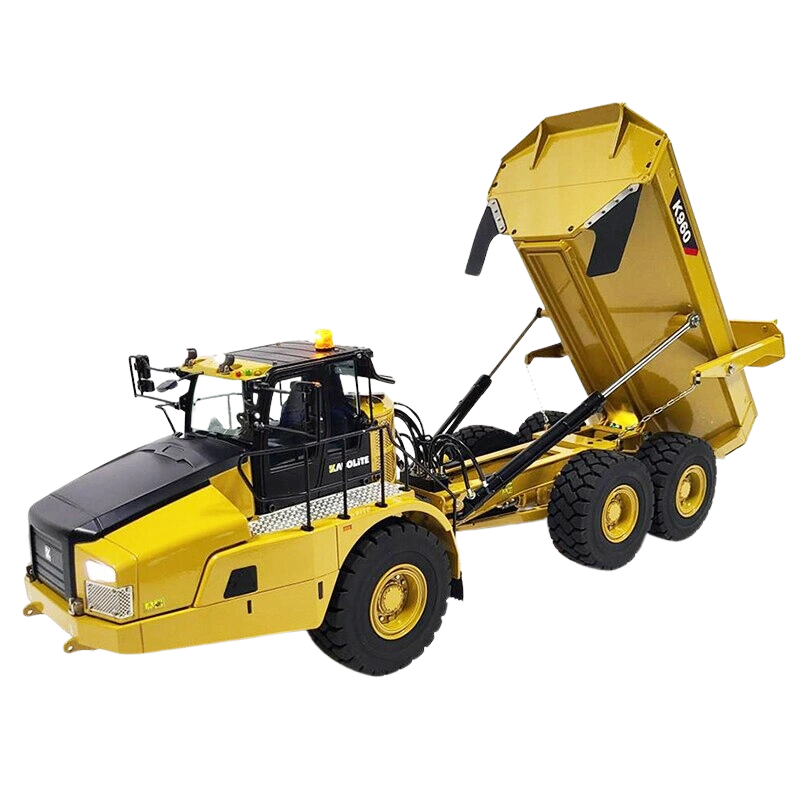

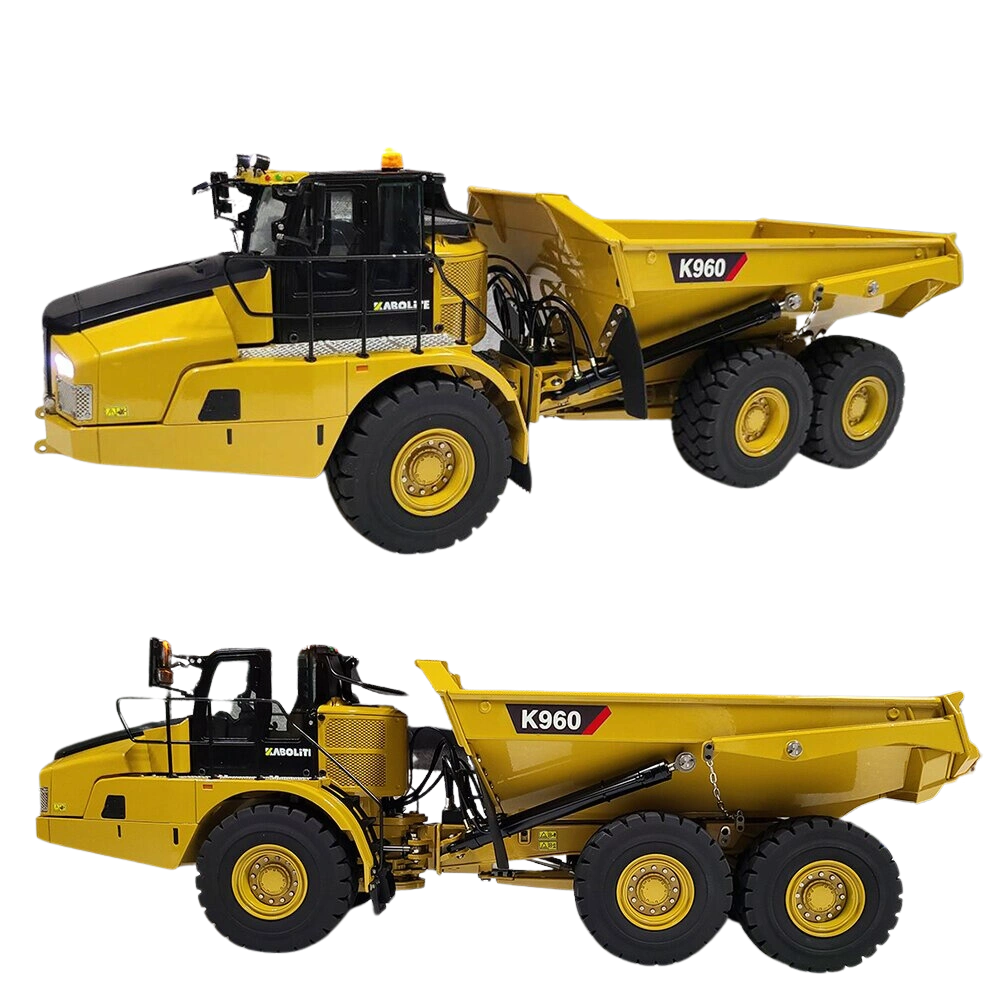

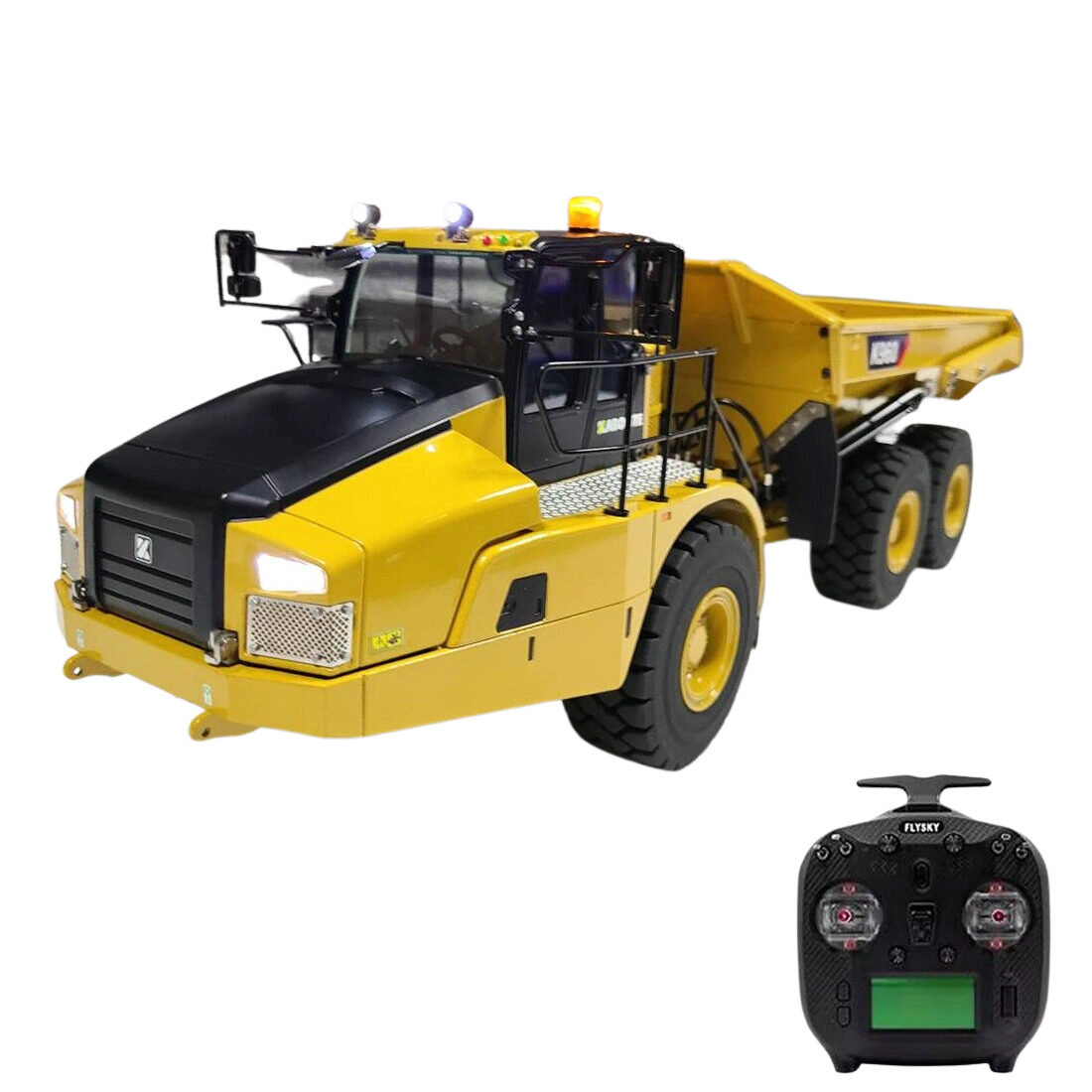

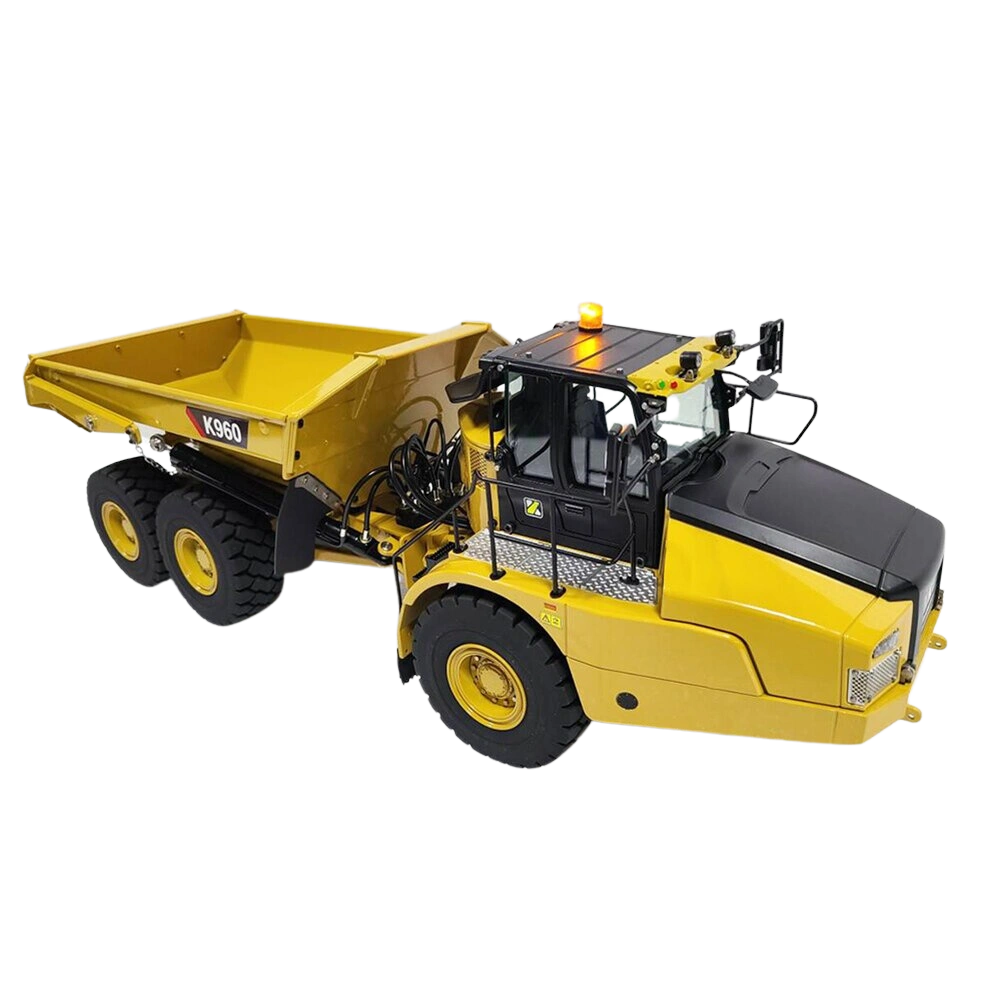

Model: K960
Dimensions and Weight:
- Product size: 580*196*198mm
- Product weight (bare car): 8.25kg
- Outer box size: 68X27.5X36.5cm
- Packing quantity: 1
- Packing method: inner foam
- Foam size: 67*33*26cm
- Gross weight: 11.76kg
- Net weight: 10.48kg
Full Description of Product Functions:
- Hinge function: The model can move forward, backward, and perform left and right steering. It also has push bucket functions for lifting and lowering. Additionally, it has independent functions for lights and rotating lights.
Product Features:
- The hinge card design closely imitates the real hinge card in terms of functionality.
- It can move forward, backward, turn, and the push bucket allows for a weight capacity of 10kg.
- It provides a strong sense of experience with its realistic appearance and detailed workmanship.
- The packaging has a high-grade atmosphere.
Specifications:
- Body capacity: 0.00241m3
- Speed: 2000-5000rpm
- Total steering angle: 60°
- Machine quality: 8.25kg
- Loading capacity: 5-10kg
Basic Parameters:
1. Body elevation height (mm): 360.43
2. The flat height of the car body (mm): 165.62
3. The height of the body raised from the ground (mm): 53.76
4. Body length (mm): 325.83
5. The maximum length of the bucket (mm): 299.36
6. The suspension distance from the ground to the front axle (mm): 31.41
7. The distance from the tail of the car body to the rear wheel axle (mm): 80.93
8. The distance from the rear wheel to the center of the middle wheel axle (mm): 98.30
9. The distance from the center of the front wheel to the middle wheel axle (mm): 229.60
10. Distance from front traction to front wheel (mm): 85.76290.17
11. Total body length (mm)
12. The height from the ground to the headlights (mm): 198.60
13. Tire edge distance (mm): 173.13
14. The overall width of the body (mm): 195.60
Battery:
- 18650/7500mAh7.4V 5C
- Usage time: 40 minutes
- Charging time: 5-8 hours
- Speed standard: 0.38KM/H
- Straight walking standard: 2 meters ± 20 ± CM
- Steering diameter: within 2 meters
- Bucket lifting weight: 10kg
- Up and down slope degree: ≤22 degrees
- Remote control distance: >25 meters
